Display device specs - Calibrite

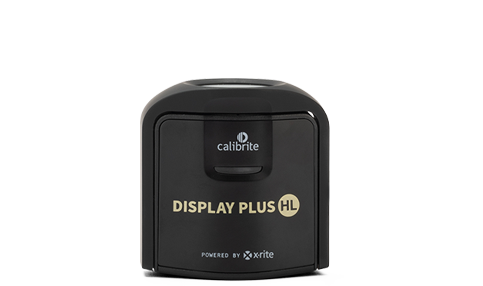

Display Plus HL

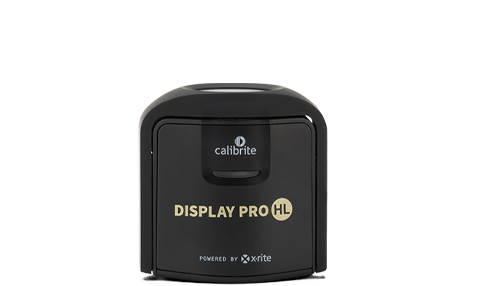

Display Pro HL

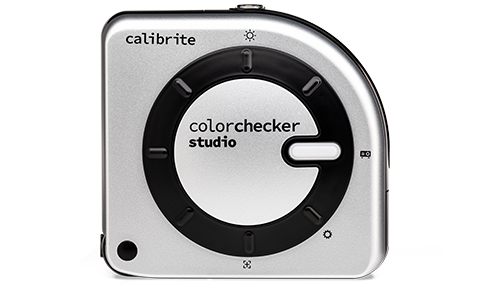

ColorChecker STUDIO

Supported Technology
Display type	Monitors, Laptops, Projectors	Monitors, Laptops, Projectors	Monitors, Laptops, Projectors, Printers
mini-LED, Apple XDR liquid retina displays
Super-bright displays
HDR support (when available)
Presets
Photo Preset
Pre-Press Preset
Video Preset - Basic
Video Preset - Advanced (5)
Create Custom Presets			from default options only
Save Custom Presets
White Point
Pre defined values (5)
Enter Custom Values (4)
Luminance
Pre defined values 60-250 cd/m2 (8)
Custom value - up to 3,000 cd/m2
Custom value - up to 10,000 cd/m2
Contrast Ratio
Native
ICC PCS Black Point (287:1)
Enter Custom Values (3)
Gamma
1.8
2.2 (default)
sRGB
BT 1886
Value
Chromatic Adaption
Bradford (default)
CIECAT02
Sharp
CMCCAT2000
Profile Version
Version 2
Version 4 (2)
Profile Type
Matrix
Table (not available on M-Chip Macs)
Patch Size
Standard
Advanced patch sets
Additional patches from an image
Input Profiling
Camera Profiling	ColorChecker Classic/SG target required	ColorChecker Classic/SG target required
Scanner Profiling	ColorChecker Classic/SG target required	ColorChecker Classic/SG target required
Printer Profiling
RGB / CMYK Printer
Utilities Options
Monitor Uniformity
Monitor Validation
Monitor Quick Check
Preset Manager
Profile Manager

Operating System Requirements

Operating System Requirements (Mac)	Mac OSX 10.15 and above (with latest updates installed)
Processor (Mac)	Intel® Core 2 Duo CPU or better including M1, M2, M2 PRO, M2 MAX processors
Operating System Requirements (Windows)	Microsoft Windows 10® 32 or 64 bit Microsoft Windows 11® 32 or 64 bitAll operating systems should have the latest Service Pack installed
Processor (Windows)	Intel® Core 2 Duo / AMD Athlon™ XP or better
Memory	2 GB (4GB Recommended)
Disk Space	4 GB of available disk space
Display Resolution	Monitor resolution 1024 x 768 or higher
Video Card	Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
Connectivity	Powered USB
Security	User must have Administrator rights to install and uninstall the application
Internet Connection	Internet connection required for automatic software updates
Languages Supported	English, French, German, Spanish, Italian, Japanese, Korean, Polish, Portuguese, Chinese (Simplified)
