Display device specs - Calibrite

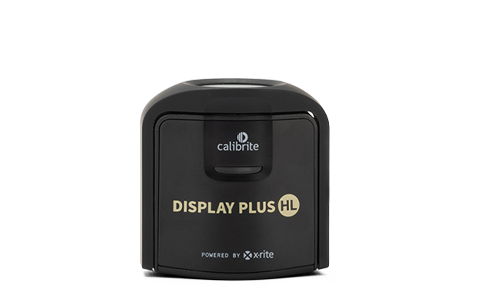

Display Plus HL

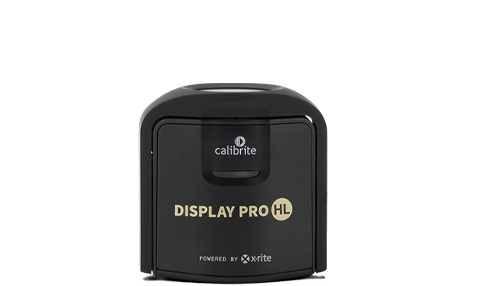

Display Pro HL

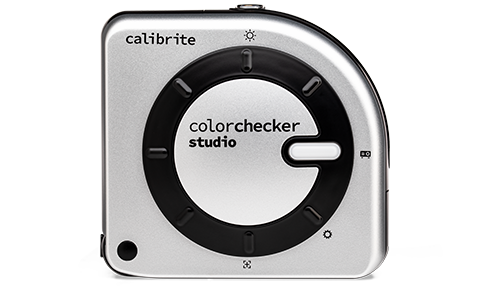

ColorChecker STUDIO

Supported Technology
Display type	Monitors, Laptops, Projectors	Monitors, Laptops, Projectors	Monitors, Laptops, Projectors, Printers
mini-LED, Apple XDR liquid retina displays
Super-bright displays
HDR support (when available)
Presets
Photo Preset
Pre-Press Preset
Video Preset - Basic
Video Preset - Advanced (5)
Create Custom Presets			from default options only
Save Custom Presets
White Point
Pre defined values (5)
Enter Custom Values (4)
Luminance
Pre defined values 60-250 cd/m2 (8)
Custom value - up to 3,000 cd/m2
Custom value - up to 10,000 cd/m2
Contrast Ratio
Native
ICC PCS Black Point (287:1)
Enter Custom Values (3)
Gamma
1.8
2.2 (default)
sRGB
BT 1886
Value
Chromatic Adaption
Bradford (default)
CIECAT02
Sharp
CMCCAT2000
Profile Version
Version 2
Version 4 (2)
Profile Type
Matrix
Table (not available on M-Chip Macs)
Patch Size
Standard
Advanced patch sets
Additional patches from an image
Input Profiling
Camera Profiling	ColorChecker Classic/SG target required	ColorChecker Classic/SG target required
Scanner Profiling	ColorChecker Classic/SG target required	ColorChecker Classic/SG target required
Printer Profiling
RGB / CMYK Printer
Utilities Options
Monitor Uniformity
Monitor Validation
Monitor Quick Check
Preset Manager
Profile Manager

Operating System Requirements

Operating System Requirements (Mac)	macOS 14 Sonoma or later (with the latest updates installed)
Processor (Mac)	Apple Silicon (M1, M2, M3, M4, M5) — Universal Binary, runs natively · Intel® Core 2 Duo or better
Operating System Requirements (Windows)	Microsoft Windows 10® or 11® (32 or 64 bit)
Processor (Windows)	Intel® Core 2 Duo / AMD Athlon™ XP or better
Memory	2 GB (4GB Recommended)
Disk Space	4 GB of available disk space
Display Resolution	1024 x 768 or higher
Video Card	To calibrate two displays, two graphics cards or a dual output card is required that supports separate colour profiles per display.
Connectivity	Powered USB
Security	User must have Administrator rights to install and uninstall the application
Internet Connection	Internet connection required for automatic software updates
Languages Supported	English, French, German, Spanish, Italian, Japanese, Korean, Polish, Portuguese, Chinese (Simplified)
Product Registration	Product registration is automatic with first use of the software.
Warranty	24 months from the date of purchase by end user in UK and European Union; 12 months in all other countries.
